WT-ZIPP TECH SPECS
ZIP SHADE
WT-ZIPP is a motorised Zip shade system engineered to deliver exceptional blackout performance, light control and fabric stability. Designed for integration into high-end residential and commercial projects, the system is particularly suited to home cinemas, media rooms, bedrooms and other applications where precise management of ambient light is critical.
A fabric retention profile is welded to the vertical edges of the shade and captured within dedicated side channels, creating a secure perimeter seal that significantly reduces light ingress whilst ensuring the fabric remains permanently retained. This Zip retention system provides improved fabric stability, minimises edge gaps and enables reliable operation across a wide range of window sizes.
Available in two formats:
RECESS
No headbox, for recess mounting, UniChannel compatible
HEADBOX
White decorative aluminium head box for surface mounting
Available in a range of sizes and fabric options, WT-ZIPP can be integrated with leading home automation and building control systems, making it the ideal choice for projects where performance, reliability and aesthetics are equally important.
ULTIMATE BLACKOUT
OPTIMUM PERFORMANCE
The welded Zip and side channel system creates a secure, continuous connection between the fabric and guide channels. This ensures the shade remains permanently retained throughout its travel, improving fabric stability, reducing edge light leakage and delivering reliable operation across large openings and demanding applications.
Home cinema environments place exceptionally high demands on light management. When specified alongside Future Automation's UniChannel recess system, WT-ZIPP can achieve an enhanced blackout effect by eliminating light leakage around the head of the shade, helping to create the optimum viewing environment.
BEYOND BLACKOUT
TRANSFORMING SPACES

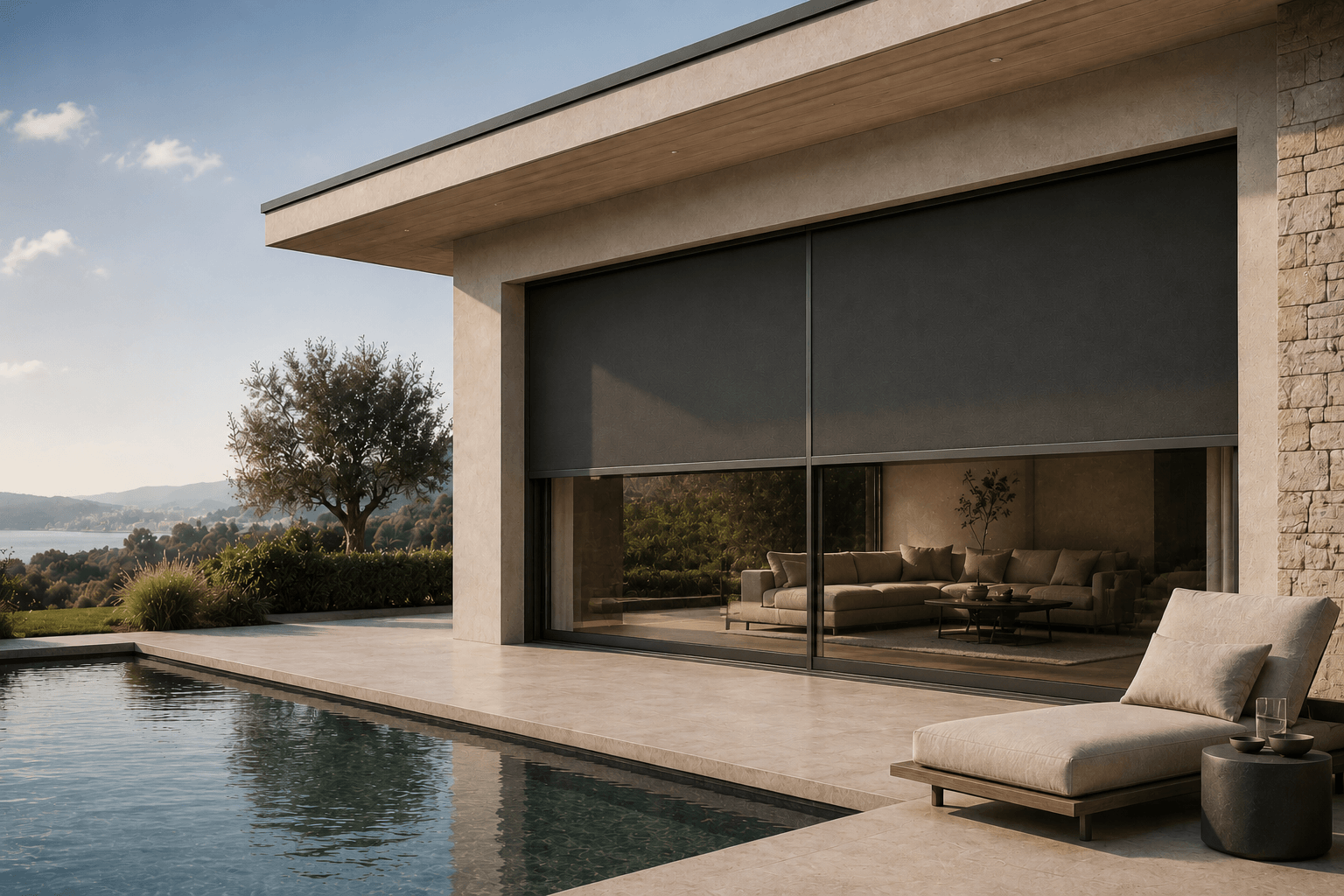

For projects requiring external shading solutions, Future Automation can also provide Zip screen systems specifically designed for outdoor use, offering effective solar control whilst maintaining outward visibility and architectural integration.
To meet the diverse requirements of each project, WT-ZIPP is available with a comprehensive range of high-quality fabrics from industry-leading suppliers. Options include blackout, dim-out, sunscreen and decorative fabrics in a variety of colours, textures and openness factors, allowing designers and specifiers to balance light control, privacy, solar gain and aesthetics.
HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | WT-ZIPP-52 | WT-ZIPP-75 | WT-ZIPP-HB-52 | WT-ZIPP-HB-75 |
|---|---|---|---|---|
| CONTROL OPTIONS AVAILABLE |
- SWITCHED LIVE - RF - RS485 |
- SWITCHED LIVE - RF - RS485 |
- SWITCHED LIVE - RF - RS485 |
- SWITCHED LIVE - RF - RS485 |
| FABRIC TYPES |
- SCREEN - TRANSLUCENT - BLACKOUT |
- SCREEN - TRANSLUCENT - BLACKOUT |
- SCREEN - TRANSLUCENT - BLACKOUT |
- SCREEN - TRANSLUCENT - BLACKOUT |
| FINISH |
- WHITE PAINT (RAL9910) - BLACK PAINT (RAL9005) - CUSTOM RAL ON REQUEST |
- WHITE PAINT (RAL9910) - BLACK PAINT (RAL9005) - CUSTOM RAL ON REQUEST |
- WHITE PAINT (RAL9910) - BLACK PAINT (RAL9005) - CUSTOM RAL ON REQUEST |
- WHITE PAINT (RAL9910) - BLACK PAINT (RAL9005) - CUSTOM RAL ON REQUEST |
| HEADBOX DIMENSIONS | N/A | N/A | 100MM (3 16/16) X 106MM (4 3/16") | 128MM (5 1/16") X 145MM (5 11/16") |
| MARINE SUITABLE | YES | YES | YES | YES |
| MAX DROP | APPROX 4M (135 1/2") | APPROX 6M (236") | APPROX 4M (135 1/2") | APPROX 6M (236") |
| MAX WIDTH | APPROX 3.2M (126") | APPROX 3.6M (142") | APPROX 3.2M (126") | APPROX 3.6M (142") |
| OUTDOOR SUITABLE | AVAILABLE AS OPTION | AVAILABLE AS OPTION | AVAILABLE AS OPTION | AVAILABLE AS OPTION |
| POWER SUPPLY | 240V OR 110V | 240V OR 110V | 240V OR 110V | 240V OR 110V |
| DOWNLOADS / SUPPORT | ||||
| TECHNICAL SHEET |
 WT-ZIPP-52 TECH
|
WT-ZIPP-75 TECH
|
WT-ZIPP-HB-52 TECH
|
WT-ZIPP-HB-75 TECH
|
| CAD |
 WT-ZIPP-52 CAD
|
WT-ZIPP-75 CAD
|
WT-ZIPP-HB-52 CAD
|
WT-ZIPP-HB-75 CAD
|
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| CONTROL OPTIONS AVAILABLE | WT-ZIPP-52 |
- SWITCHED LIVE - RF - RS485 |
| WT-ZIPP-75 |
- SWITCHED LIVE - RF - RS485 |
|
| WT-ZIPP-HB-52 |
- SWITCHED LIVE - RF - RS485 |
|
| WT-ZIPP-HB-75 |
- SWITCHED LIVE - RF - RS485 |
|
| FABRIC TYPES | WT-ZIPP-52 |
- SCREEN - TRANSLUCENT - BLACKOUT |
| WT-ZIPP-75 |
- SCREEN - TRANSLUCENT - BLACKOUT |
|
| WT-ZIPP-HB-52 |
- SCREEN - TRANSLUCENT - BLACKOUT |
|
| WT-ZIPP-HB-75 |
- SCREEN - TRANSLUCENT - BLACKOUT |
|
| FINISH | WT-ZIPP-52 |
- WHITE PAINT (RAL9910) - BLACK PAINT (RAL9005) - CUSTOM RAL ON REQUEST |
| WT-ZIPP-75 |
- WHITE PAINT (RAL9910) - BLACK PAINT (RAL9005) - CUSTOM RAL ON REQUEST |
|
| WT-ZIPP-HB-52 |
- WHITE PAINT (RAL9910) - BLACK PAINT (RAL9005) - CUSTOM RAL ON REQUEST |
|
| WT-ZIPP-HB-75 |
- WHITE PAINT (RAL9910) - BLACK PAINT (RAL9005) - CUSTOM RAL ON REQUEST |
|
| HEADBOX DIMENSIONS | WT-ZIPP-52 | N/A |
| WT-ZIPP-75 | N/A | |
| WT-ZIPP-HB-52 | 100MM (3 16/16) X 106MM (4 3/16") | |
| WT-ZIPP-HB-75 | 128MM (5 1/16") X 145MM (5 11/16") | |
| MARINE SUITABLE | WT-ZIPP-52 | YES |
| WT-ZIPP-75 | YES | |
| WT-ZIPP-HB-52 | YES | |
| WT-ZIPP-HB-75 | YES | |
| MAX DROP | WT-ZIPP-52 | APPROX 4M (135 1/2") |
| WT-ZIPP-75 | APPROX 6M (236") | |
| WT-ZIPP-HB-52 | APPROX 4M (135 1/2") | |
| WT-ZIPP-HB-75 | APPROX 6M (236") | |
| MAX WIDTH | WT-ZIPP-52 | APPROX 3.2M (126") |
| WT-ZIPP-75 | APPROX 3.6M (142") | |
| WT-ZIPP-HB-52 | APPROX 3.2M (126") | |
| WT-ZIPP-HB-75 | APPROX 3.6M (142") | |
| OUTDOOR SUITABLE | WT-ZIPP-52 | AVAILABLE AS OPTION |
| WT-ZIPP-75 | AVAILABLE AS OPTION | |
| WT-ZIPP-HB-52 | AVAILABLE AS OPTION | |
| WT-ZIPP-HB-75 | AVAILABLE AS OPTION | |
| POWER SUPPLY | WT-ZIPP-52 | 240V OR 110V |
| WT-ZIPP-75 | 240V OR 110V | |
| WT-ZIPP-HB-52 | 240V OR 110V | |
| WT-ZIPP-HB-75 | 240V OR 110V | |
