UB-BCP TECH SPECS
WALL BOX BLANK COVER PANEL

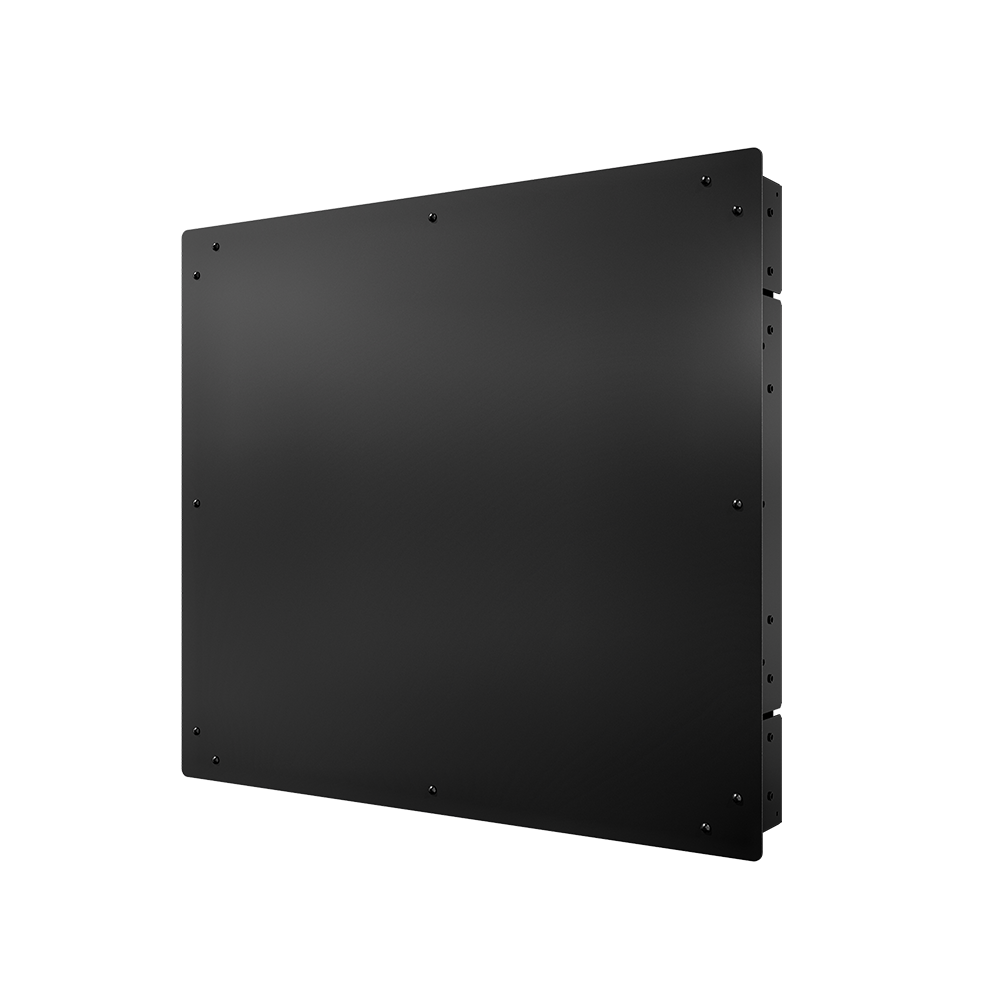

The UB-BCP is designed to accompany the Future Automation UB In Wall Box.
The wall box cover attaches to the wall box, once it has been installed, to protect the internal rails as well as any accessories & components that have been installed prior to the screen.
The UB-BCP is available in 3 sizes to suit the each UB wall box model.
A vented cover panel option (UB-VCP) is also available LEARN MORE
HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | UB22-BCP | UB27-BCP | UB32-BCP |
|---|---|---|---|
| COMPATIBLE PRODUCTS | UB22 | UB27 | UB32 |
| FINISH | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE |
| MARINE SUITABLE | NO | NO | NO |
| OUTDOOR SUITABLE | NO | NO | NO |
| PRODUCT DIMENSIONS | 580 X 790 X 1.5MM (22 13/16 X 31 1/8 X 1/16") | 700 X 790 X 1.5MM (27 9/16 X 31 1/8 X 1/16") | 820 X 790 X 1.5MM (32 5/16 X 31 1/8 X 1/16") |
| DOWNLOADS / SUPPORT | |||
| TECHNICAL SHEET |
 UB22-BCP TECH
|
UB27-BCP TECH
|
UB32-BCP TECH
|
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| COMPATIBLE PRODUCTS | UB22-BCP | UB22 |
| UB27-BCP | UB27 | |
| UB32-BCP | UB32 | |
| FINISH | UB22-BCP | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE |
| UB27-BCP | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE | |
| UB32-BCP | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE | |
| MARINE SUITABLE | UB22-BCP | NO |
| UB27-BCP | NO | |
| UB32-BCP | NO | |
| OUTDOOR SUITABLE | UB22-BCP | NO |
| UB27-BCP | NO | |
| UB32-BCP | NO | |
| PRODUCT DIMENSIONS | UB22-BCP | 580 X 790 X 1.5MM (22 13/16 X 31 1/8 X 1/16") |
| UB27-BCP | 700 X 790 X 1.5MM (27 9/16 X 31 1/8 X 1/16") | |
| UB32-BCP | 820 X 790 X 1.5MM (32 5/16 X 31 1/8 X 1/16") | |
| DOWNLOADS / SUPPORT | ||
| TECHNICAL SHEET |
UB22-BCP Tech
UB27-BCP Tech
UB32-BCP Tech
|
|
